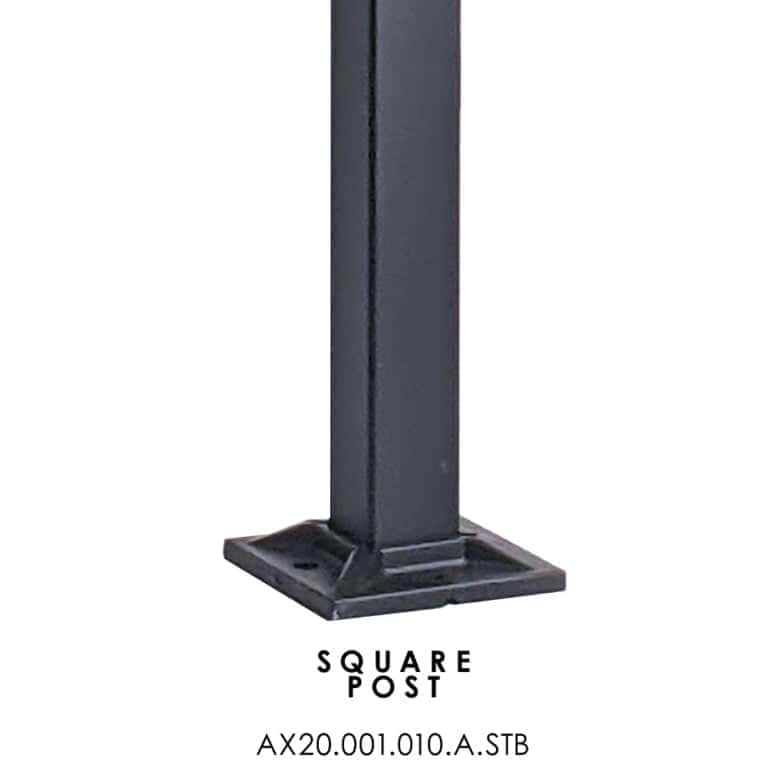

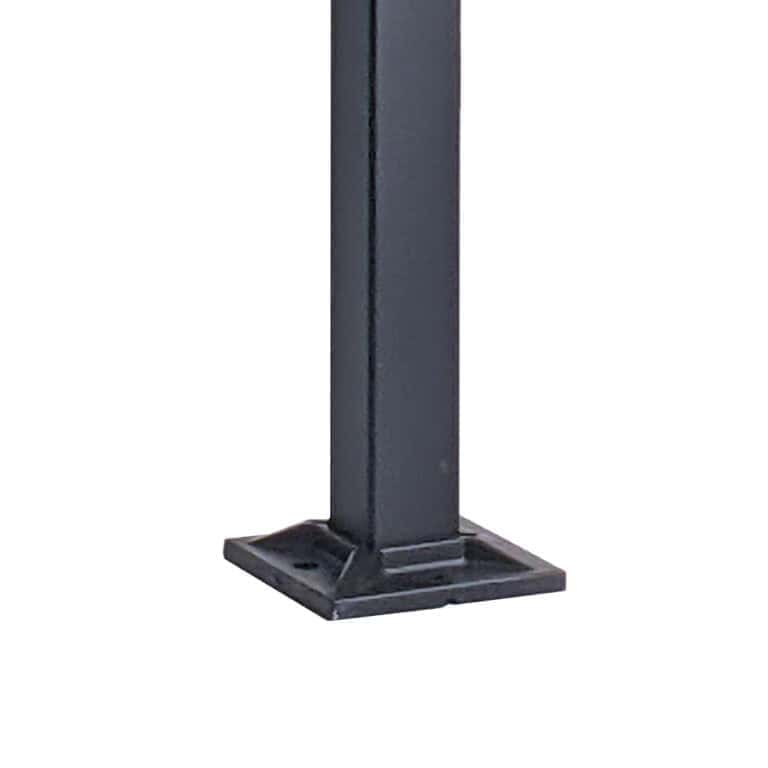

Satin Black – Floor Mounted Square Post – 40 x 40 x 2 mm

• AX20.001.010.A.STB
• Satin Black Powder Coat
• Square Post – Floor Mounted
• 40 mm x 40 mm Square – 2mm wall thickness
• 1000 mm tall ( 39 – 3/8 in. )

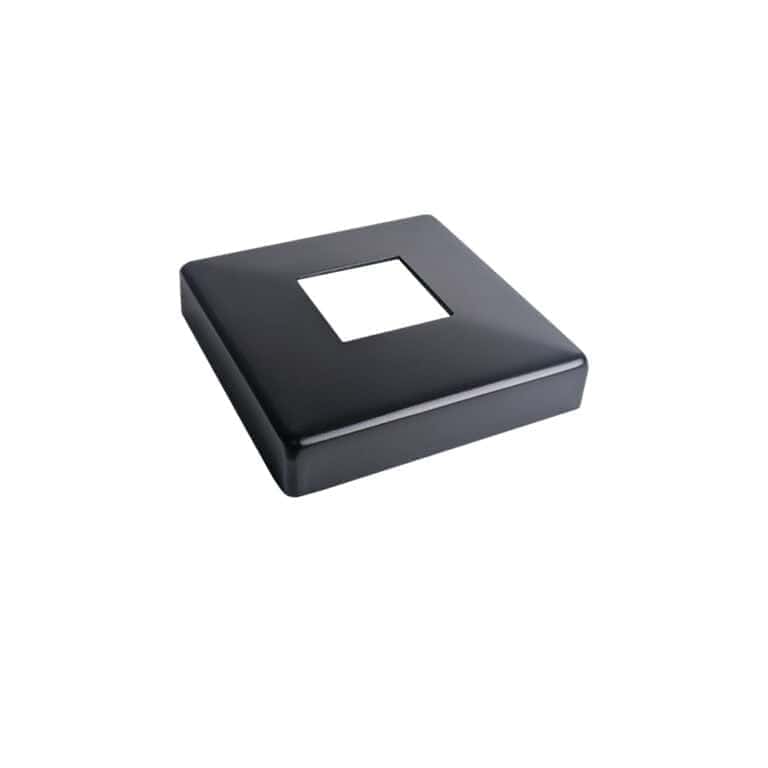

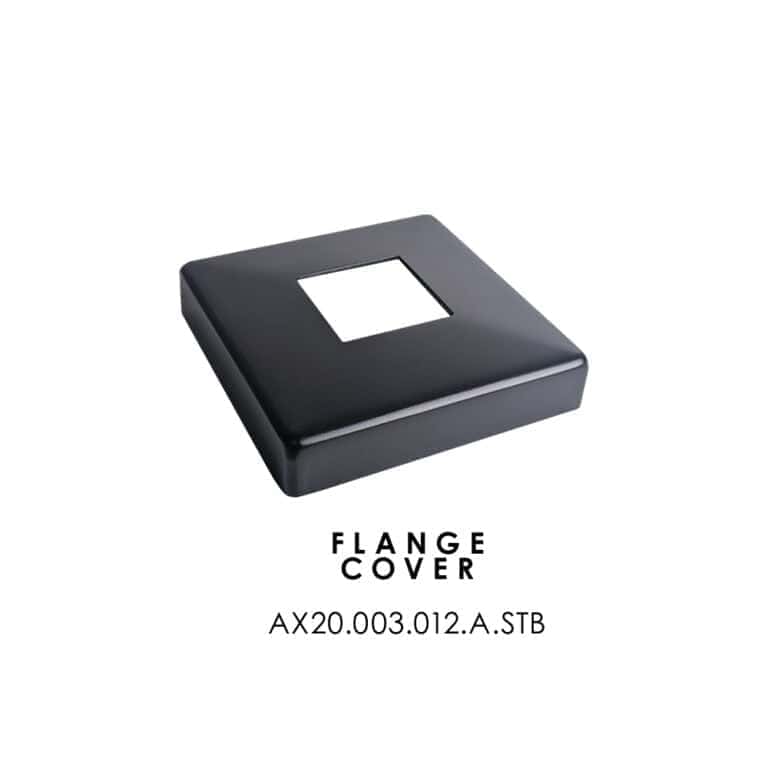

• Comes with one Satin Black Floor Mount with Flange Cover – 100 mm base ( 3 – 15/16″ in.)

Floor Mounting Methods using Attached Flange

• Standard Floor Mount – Screws into the floor with the already attached bracket and is covered with the flange.
  • Wood floor = Requires 2 x Lag Bolt – Part # AX00.091.800.A.SP
  • Concrete floor = Requires 2 x Concrete Anchor – Part # AX00.091.805.A.SP

Mounting Methods using no Flange – Recommended to purchase the 42.4 mm handrail tube and use that as the posts. This saves you money overall as you don’t have to purchase the already welded flange.

• Level Floor Mount – No Flange – Purchase 40×40 mm square handrail tube. Purchase the Core Mount.
• Angled Floor Mount – Purchase 40×40 mm square handrail tube. Purchase the Core Mount and Angled Flange Cover.
• Side / Wall Mount – Purchase 40×40 mm square handrail tube. Purchase the Wall Mount kit. Also purchase flat or round end caps for the bottom of the post.

**Core Mount requires adhesives for Installation**

• For mounting into structure – use 2 part epoxy EPC-410
• For attaching tubing to core mount Installation uses our adhesive – Part # AX00.100.525
