HFSTB16.6.19 Universal Wall Mount Iron Baluster Base Heights

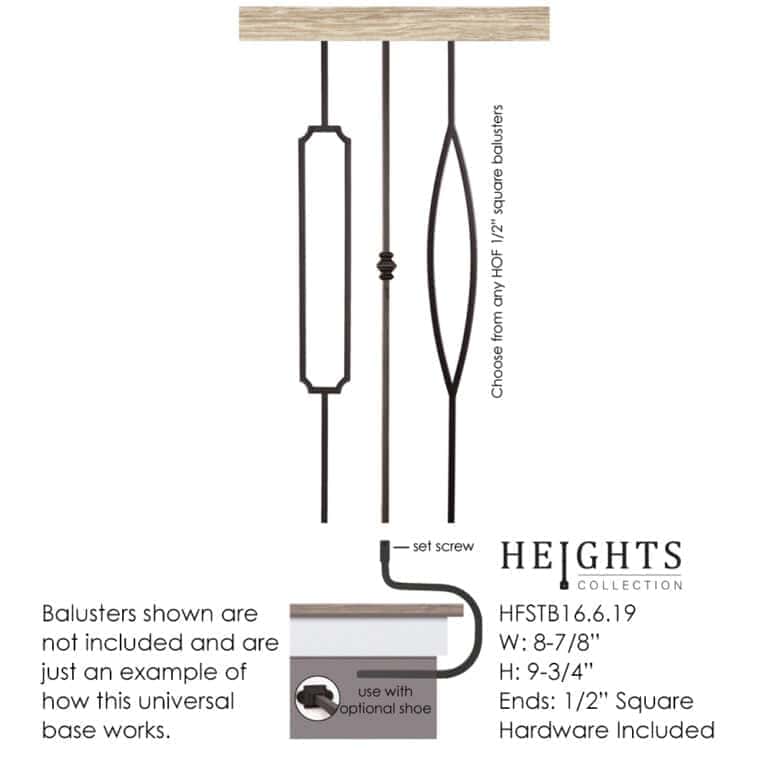

The House of Forgings HFSTB16.6.19 Universal Wall Mount Iron Baluster Base, part of the Heights series, is a new, patent-pending design developed by House of Forgings. Engineered to be the best-looking and most functional wall-mounted baluster system available, it stands out as the only option free from unattractive brackets. This base, powdercoated in Satin Black, measures 8-7/8″ wide, 9-3/4″ high, and 1/2″ square in thickness, weighing 3.2 pounds, with hardware included. It is designed to hold other 1/2″ square iron balusters, as shown in example photos.

Key Features:

• Fits a full range of common tread thicknesses from 3/4” – 4”
• Fits either rake or balcony height finished railing 36”–42”
• For use with 1”–6” wide newel posts
• For use with numerous styles of skirt board/trim options
• Mount with wood screws into framing, sheet rock anchors or epoxy
• For use with any standard baluster shoe or base collars with 1/2” square opening
• The Universal design fits any 1/2” square 44” length baluster, secured with set screw
• Overall design specifications allow for standard inline installation of both the newel posts and handrail
• Trimmable designs allow you to cut the baluster relative to the width of the newel post in use to easily install into center line of handrail

Product Specs:

• Model: HFSTB16.6.19
• Series: Heights (patent-pending)
• Design: Universal wall mount base
• Dimensions: 8-7/8″ width; 9-3/4″ height; 1/2″ square thickness
• Material: Wrought iron
• Finish: Powdercoated Satin Black
• Weight: 3.2 lbs
• Hardware: Included
• Compatibility: Holds 1/2″ square iron balusters

Usage Tips: Mount to framing, sheet rock, or with epoxy, trimming to fit newel post width for center-line handrail alignment. Use included hardware to secure 1/2″ square balusters with the set screw. Clean with a soft, dry cloth; avoid abrasive cleaners to maintain the Satin Black finish.

Availability and lead times:

• Stocked and ready for immediate shipping.

Notes: Installation and detailed specs are in attached images; lifestyle photos are digitally edited examples, to be replaced with customer photos over time.
